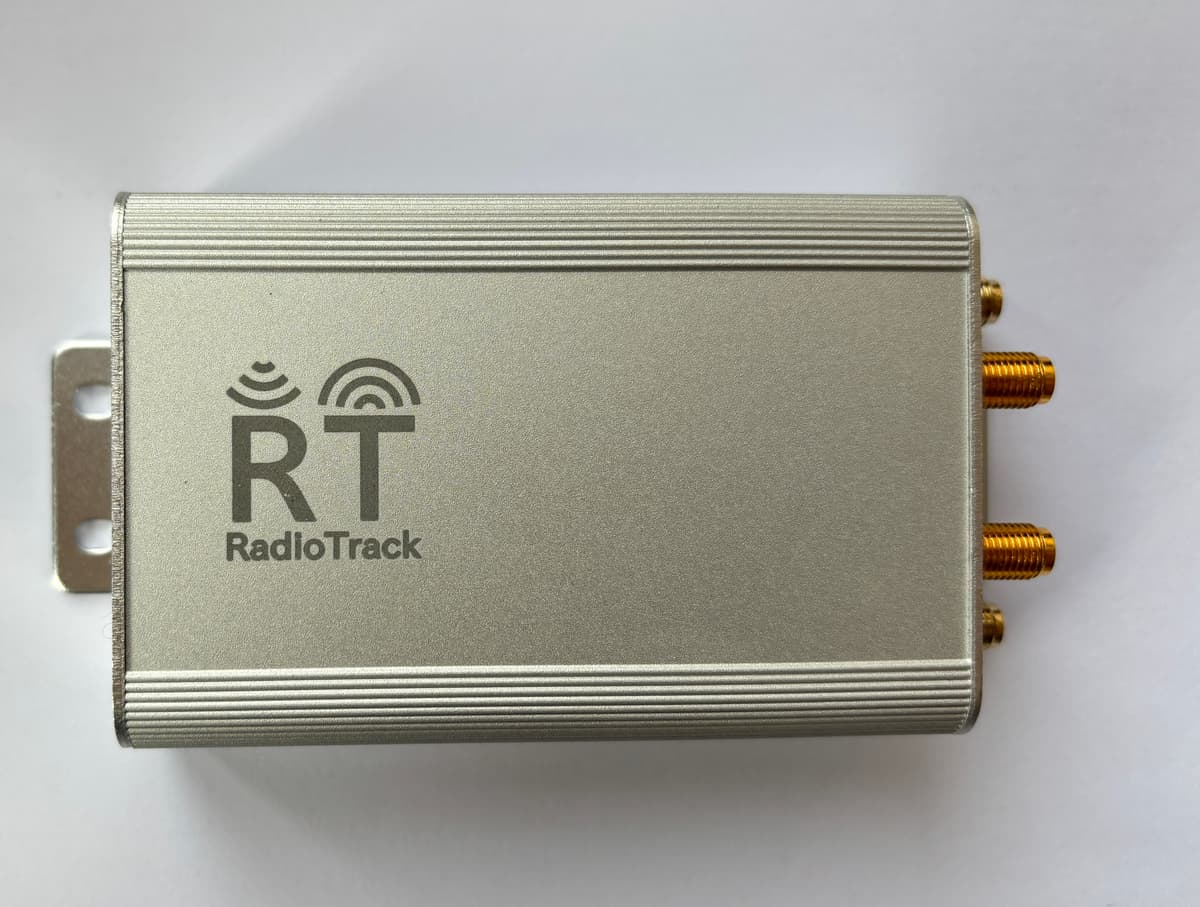

TrackBox_DLW02mini Mini Drone Detection Module

Product Overview

The TrackBox_DLW02mini module is designed for detecting, identifying, and locating drones, providing drone surveillance within a 3 km radius. Despite its mini size, it is full-featured, with wide model coverage, low false alarm rates, and compact dimensions, making it suitable for integration into portable devices such as jammer guns.

Core Advantages

Mini Size, Full Features

• Ultra-Compact Design: Dimensions of only 112×58×25mm, weight approximately 130g
• Low Power Operation: Power consumption approximately 5W, suitable for portable device power supply
• Easy Integration: Specifically designed for portable anti-drone devices
• Complete Functionality: Small in size but equivalent in functionality to standard versions

Extensive Model Coverage

Supports mainstream drone models in the market, including:

• Consumer Drones: DJI full series, Autel, FIMI, Hubsan
• Professional Drones: Parrot series, FPV analog transmission drones
• Latest Models: Supports latest releases like DJI AIR3, Mini4 Pro

Full-Band Monitoring Capability

• Key Bands: 2.4G, 5.2G, 5.8G mainstream communication bands
• Spectrum Detection: Detection method based on spectrum analysis with extremely low false alarm rate
• Real-time Monitoring: Drones can be detected immediately upon startup with fast response

High-Performance Detection

• Detection Range: Up to 3km (varies by drone model and electromagnetic environment; can be extended to 5km with LNA)
• Fast Detection: Drones can be detected immediately upon powering on
• High Refresh Rate: 2 seconds per cycle
• Multiple Detection: Capable of detecting multiple drones simultaneously (>10)
• Low False Alarms: Spectrum detection ensures extremely low false alarm rates

Technical Features

DJI Model Protocol Analysis

Analyzes DJI protocols to obtain drone ID (consistent with the fuselage ID), GPS coordinates, altitude, speed, and other information for both the drone and pilot. Positioning accuracy is approximately 10 meters, suitable for generating drone trajectories. Supports detection and positioning of the latest models such as AIR3 and Mini4 Pro.

Remote ID Broadcast Model Positioning and Tracking

Detects models equipped with Remote ID, providing real-time access to serial numbers, GPS positions, altitude, speed, and other information. Covers most of the latest models on the market and complies with national standard GB 42590-2023 for drones like DJI and Autel. Positioning distance: 600-1000m, up to 1.5km in suburban areas.

WiFi and Enhanced WiFi Model Detection

• Detects WiFi video transmission models such as Beast, SYMA, PowerEgg, and Hover
• Supports user-added WiFi video transmission models
• Detects enhanced WiFi video transmission models like DJI Mini SE and Parrot Anafi

GPS Positioning Function

• Equipped with GPS for obtaining the module's current GPS coordinates, altitude, and timestamp
• Supports hot start for quick positioning
• Provides precise spatial-temporal reference for drone trajectory analysis

Hardware Specifications

Parameter	Specification
Power Consumption	Approximately 5W
Power Supply	Type-C or DC 5V
Dimensions	112×58×25mm
Weight	About 130g
Operating Temperature	-20°C to 55°C
Interface	Serial data output, baud rate 115200
Detection Frequency	70MHz - 6GHz (focus on 2.4G/5.2G/5.8G)
Detection Range	3km (expandable to 5km)
Positioning Accuracy	Approximately 10m
Refresh Rate	2 seconds per cycle

Communication Protocol

Status Message

Module status information, sent approximately every 2.5 seconds, similar to a device heartbeat:

#,status,%d,%d,%d,%d,%d,%d,%d,%.1f,%d,%f,%f,%f\n

GPS Status, Year, Month, Day, Hour, Minute, Second, Frequency (MHz), Gain (dB), Longitude, Latitude, Altitude

Detection Message

Sent once for each detected drone:

#,result,%d,%d,%d,%d,%d,%d,%d,%.1f,%d,%f,%f,%f,%s,%s,%d,%.1f,%.1f,%f,%f,%.1f,%.1,%f,%f,%.1f,%.1f,%.1f,%.1f,%f,%f,%.1f,%.1f\n

GPS Status, Year, Month, Day, Hour, Minute, Second, Frequency (MHz), Gain (dB), Longitude, Latitude, Altitude, Model, Serial Number, Frequency (MHz), Bandwidth (MHz), Drone Longitude, Drone Latitude, Drone Distance, Drone Altitude, Drone Altitude (AMSL), North Velocity, East Velocity, Up Velocity, Heading, Pilot Longitude, Pilot Latitude, Home Point Longitude, Home Point Latitude

System Integration

Integration Methods

• Modular Design: Specifically designed for portable device integration
• Standard Interface: Serial output method
• Open Protocol: Complete communication protocol documentation provided

Expansion Capabilities

• LNA Extension: Can add low-noise amplifiers to extend detection range
• Antenna Optimization: Supports high-gain antennas for enhanced performance
• Portable Integration: Particularly suitable for integration into jammer guns and other portable anti-drone devices

Application Scenarios

Portable Anti-Drone Devices

• Jammer Gun Integration: Perfect fit for various portable jammer guns
• Handheld Detectors: Can be integrated into handheld drone detection devices
• Mobile Monitoring: Suitable for mobile patrol and temporary monitoring needs

Lightweight Deployment

• Rapid Deployment: Small size facilitates quick installation and deployment
• Temporary Monitoring: Suitable for temporary events and activities drone monitoring
• Concealed Installation: Compact form factor enables concealed installation

Installation and Deployment

Installation Requirements

• Good RF environment required, avoiding strong interference sources
• Recommended installation at elevated positions for good line-of-sight environment
• Stable 5V power supply required

Configuration and Debugging

• Professional configuration software and debugging tools provided
• Supports serial communication and parameter configuration
• Comprehensive logging and performance monitoring functions

Technical Support

• Complete technical documentation and integration guides provided
• Professional technical team provides integration support
• Continuous firmware updates and feature optimization
